vFirewall

Description

Onboarding

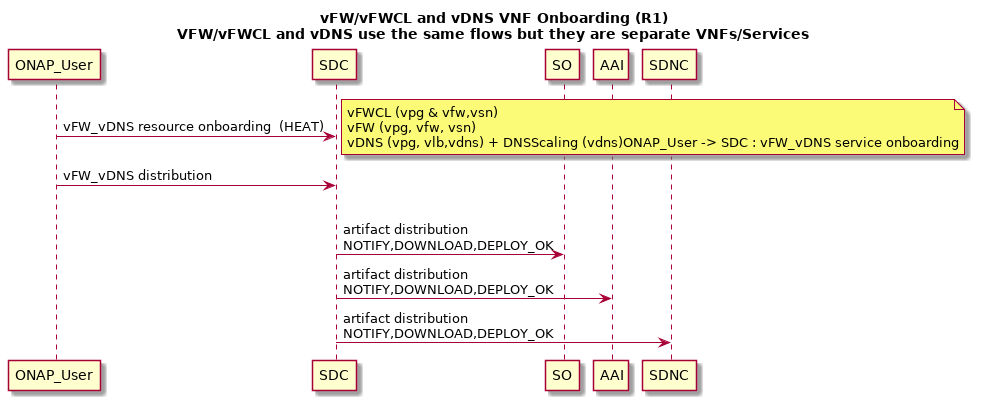

@startuml title vFW/vFWCL and vDNS VNF Onboarding (R1)\nVFW/vFWCL and vDNS use the same flows but they are separate VNFs/Services ONAP_User -> SDC : vFW_vDNS resource onboarding (HEAT) note right : vFWCL (vpg & vfw,vsn)\nvFW (vpg, vfw, vsn)\nvDNS (vpg, vlb,vdns) + DNSScaling (vdns)\ ONAP_User -> SDC : vFW_vDNS service onboarding ONAP_User -> SDC : vFW_vDNS distribution ||| SDC -> SO : artifact distribution\nNOTIFY,DOWNLOAD,DEPLOY_OK SDC -> AAI : artifact distribution\nNOTIFY,DOWNLOAD,DEPLOY_OK SDC -> SDNC : artifact distribution\nNOTIFY,DOWNLOAD,DEPLOY_OK @enduml

Instantiation

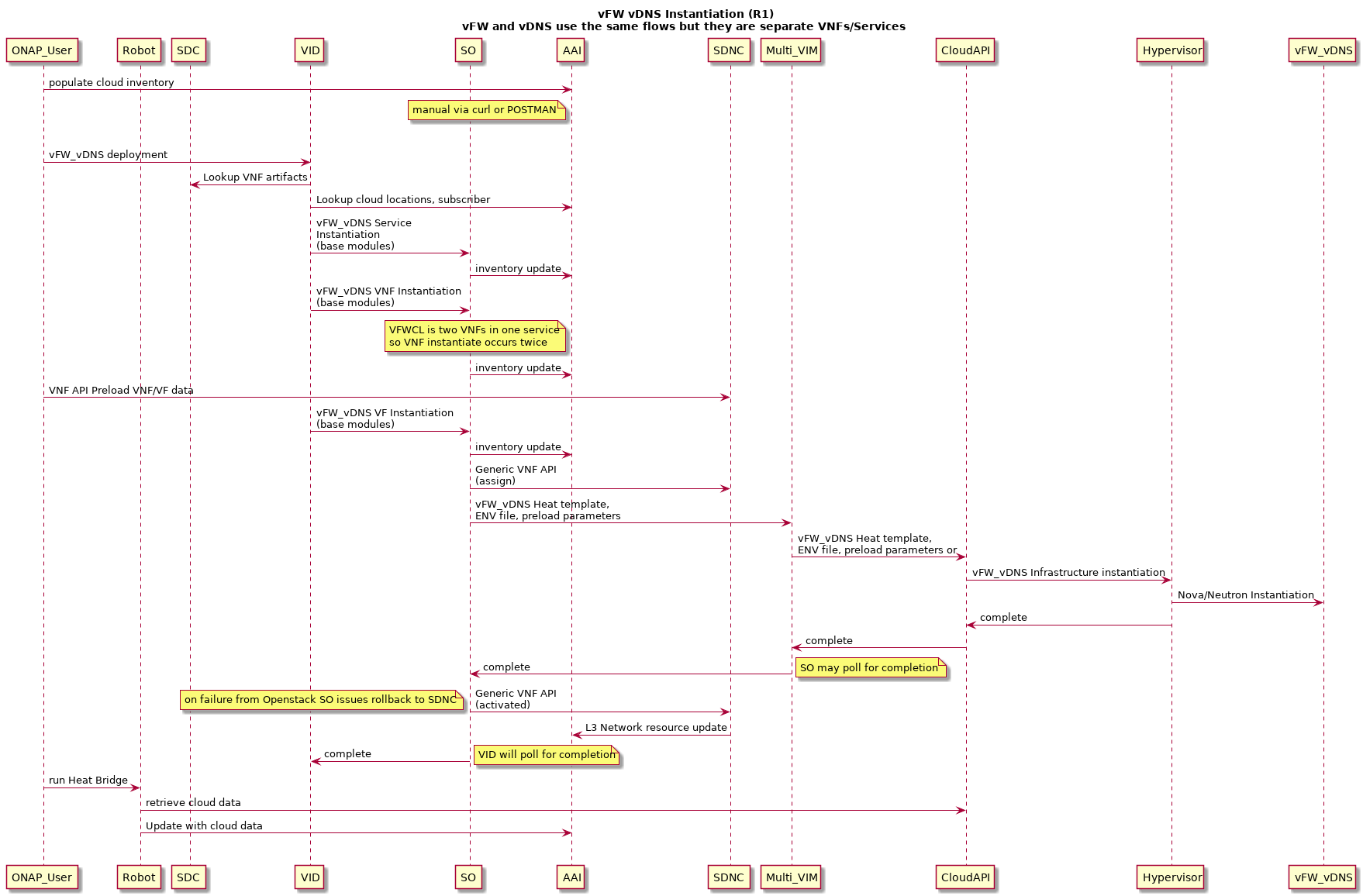

@startuml title vFW vDNS Instantiation (R1)\nvFW and vDNS use the same flows but they are separate VNFs/Services participant ONAP_User participant Robot Participant SDC Participant VID Participant SO ONAP_User -> AAI : populate cloud inventory note left of AAI: manual via curl or POSTMAN ||| ONAP_User -> VID : vFW_vDNS deployment VID -> SDC : Lookup VNF artifacts VID -> AAI : Lookup cloud locations, subscriber VID -> SO : vFW_vDNS Service \nInstantiation\n(base modules) SO -> AAI : inventory update VID -> SO : vFW_vDNS VNF Instantiation\n(base modules) note left of AAI : VFWCL is two VNFs in one service\nso VNF instantiate occurs twice SO -> AAI : inventory update ONAP_User -> SDNC : VNF API Preload VNF/VF data VID -> SO : vFW_vDNS VF Instantiation\n(base modules) SO -> AAI : inventory update SO -> SDNC : Generic VNF API\n(assign) SO -> Multi_VIM : vFW_vDNS Heat template, \nENV file, preload parameters Multi_VIM -> CloudAPI : vFW_vDNS Heat template,\nENV file, preload parameters or CloudAPI -> Hypervisor : vFW_vDNS Infrastructure instantiation Hypervisor -> vFW_vDNS : Nova/Neutron Instantiation Hypervisor -> CloudAPI : complete CloudAPI -> Multi_VIM : complete Multi_VIM -> SO : complete note right : SO may poll for completion SO -> SDNC: Generic VNF API\n(activated) note left : on failure from Openstack SO issues rollback to SDNC SDNC -> AAI : L3 Network resource update SO -> VID : complete note right : VID will poll for completion ONAP_User -> Robot : run Heat Bridge Robot -> CloudAPI : retrieve cloud data Robot -> AAI : Update with cloud data ||| @enduml
